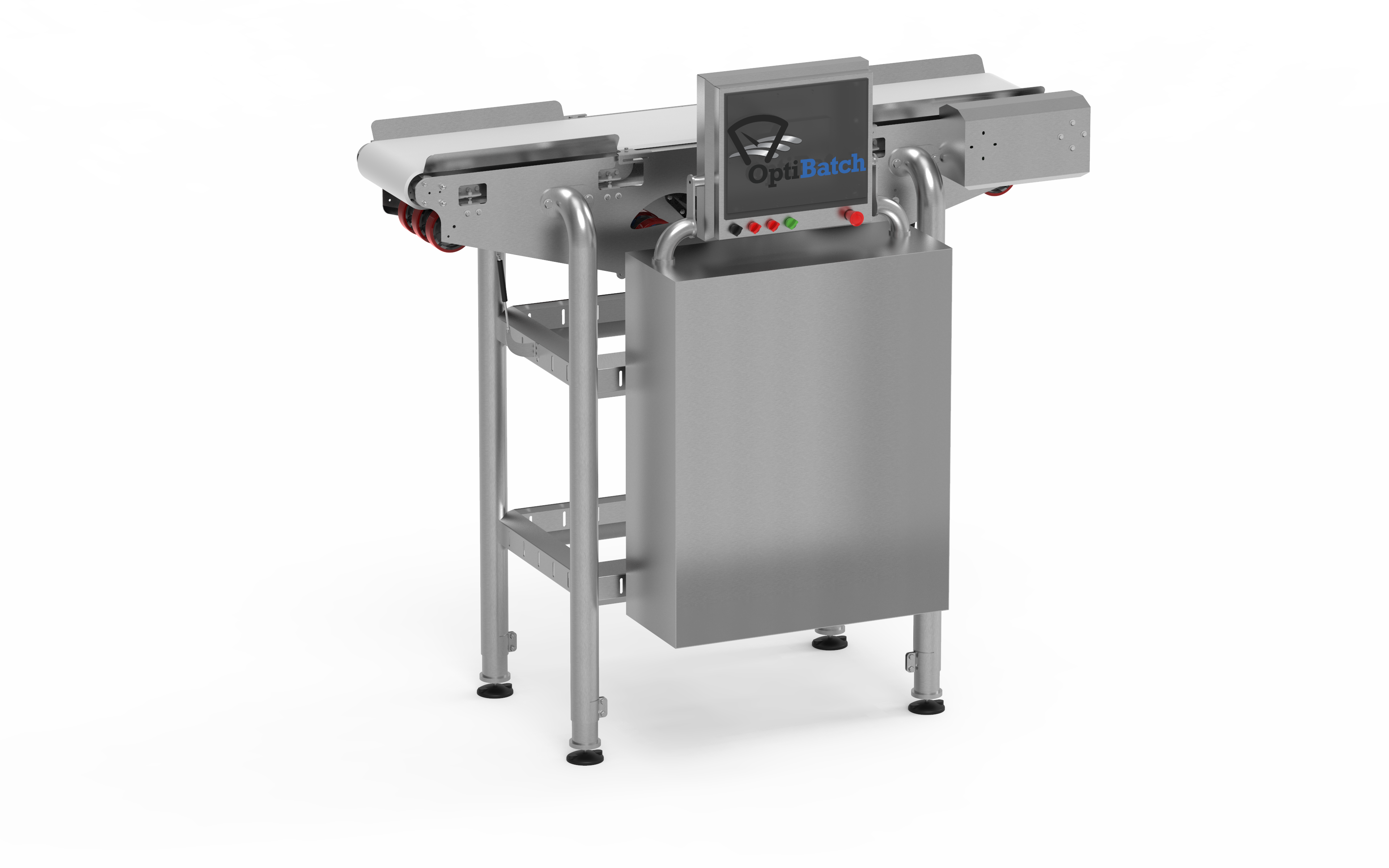

Introducing dynamic DSC scales in different models to meet the needs for dynamic
weighing of different types and weights.
Robust and stable construction with excellent finish.
Eqquiped with advanced technology electrical and electronic parts.
Load cell: Stainless steel IP68 / IP69k single point load cell 100kg / C5

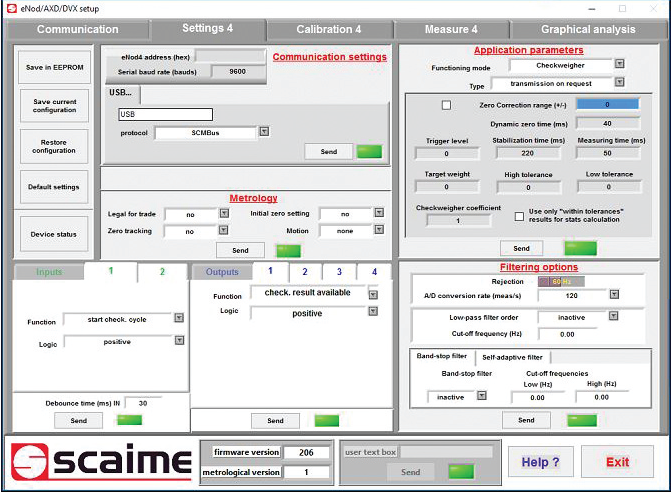

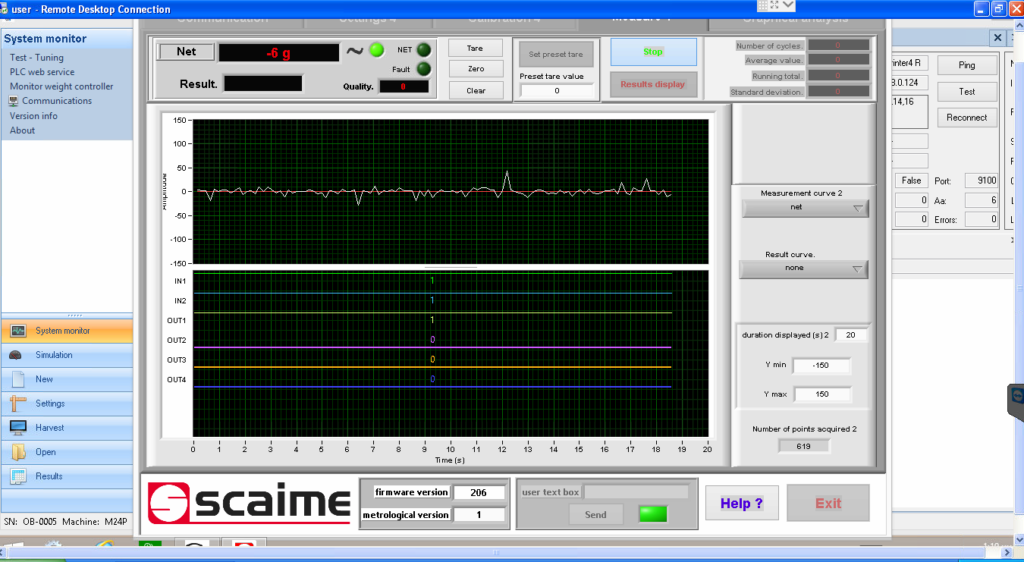

Advanced high end design 24bit weighing controller.
Analog to digital conversion rate up to 1920 meas / sec with maximum scaled resolution of ± 500.000 points.
Digital filtering and measurement scaling.
Easy to intergrate into automated system ModBus RTU, CANopen® and
PROFIBUS-DPV1.
Profinet Industrial Ethernet communication.
The control is performed by a powerful
industrial Programmable Logic controller,
which combines rapid data proccessing,
latest communication technology
to interface with other devices, and use
under extremely harsh conditions.

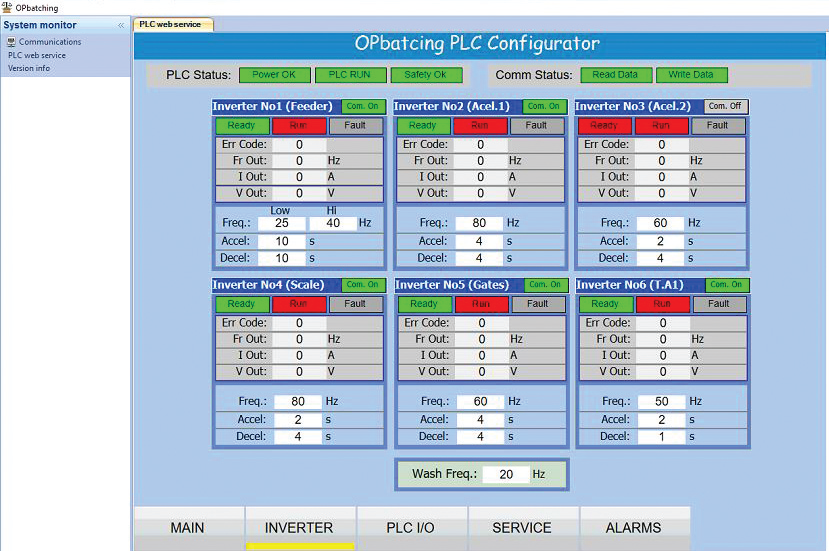

fanless PC of latest hardware and software, with touchscreen 17” IP66
All components including air block
electro valves, electric motors,
PLC, weighing controller are connected in the same network,
Profinet and or Modbus, so it is easily serviced, maintenance, and expanded to future demands.
General Characteristics:
Weighing platform : 600x300mm or 900x300mm
Weighing capacity : up to 10kg
Weighing speed : up to 240 pces per minute
Conveyors Plastic : PP belt suitable for food
Adjustable belt speed : up to 2m / sec
Precision weighing : up to 0.5g depending on range
