• Fully Stainless steel construction including silo, blowers and dosing system.
• Suitable to place it in a boat or in floating platforms, so you can feed at anytime.

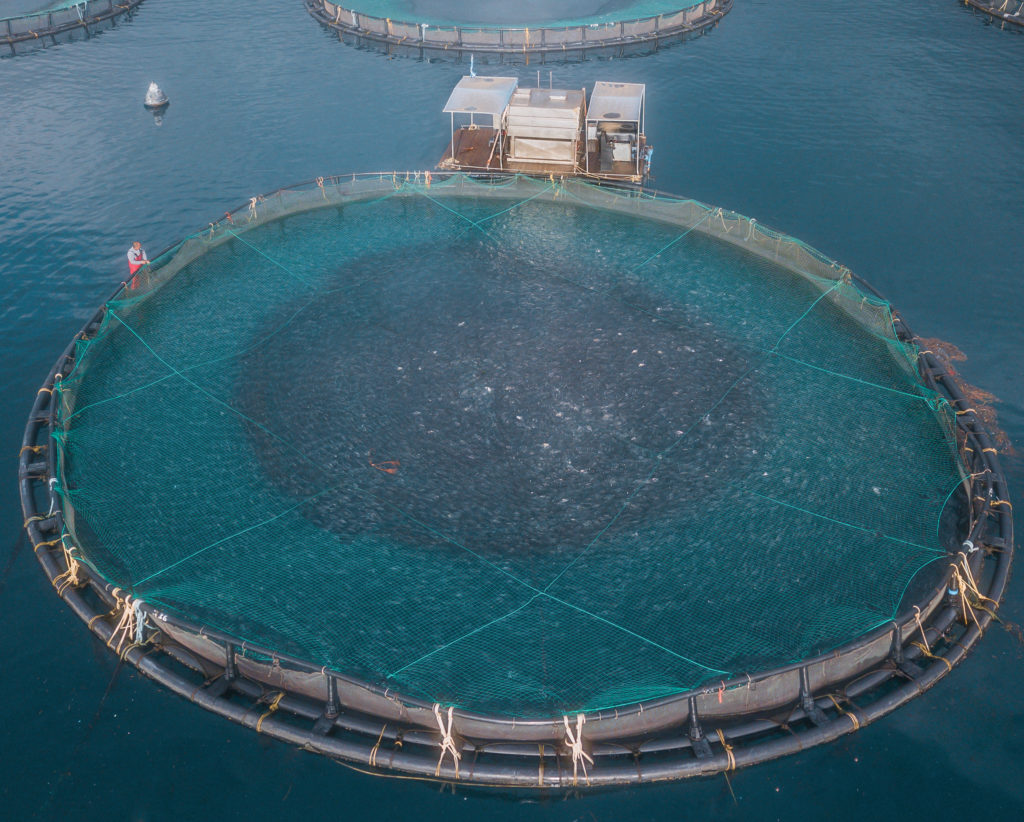

•You can feed cages up to 120 meters perimeter.
• Feeding rate up to 60 kg/min.
• Dispersion up to 30 meters.
• Power Supply from 7 KVA diesel electro generator (standard).
Models
Two standard models.
• 5 tn capacity in 2 silo (2/3 and 1/3) with two dosing systems for more flexibility.
• 4 tn capacity with two silo and two doser.
Others on request.
Blower
• The special design of stainless steel blower, supply the necessary air, at the right static pressure.
• The blower motor is driven from an inverter that it is controlled from the PLC. Thus the right air supply controls the flow of feed with stability and accuracy.
• Easy connecion and disconnection for service and maintenance purposes.
• Outlet stainless steel tube with special design dispersion materials.
Doser
• Stainless steel screw doser, with special design of step, feed inlet, so to give accuracy and maximum feed rate.
• The screw doser motor is driven from an inverter that it is controlled from the PLC. Thus the rate is accurate and stable. The feed quantity is measured by a tacho sensor.
• Easy connection and disconnection for service and maintenance purposes.
Software
• The feed program is entered from Microsoft Excel file, independently or through Aqua Manager program. It is possible to download the feeding program with a USB stick, Ethernet, GSM or Wi-Fi.
• Feed quantity in kg and feed rate in kg / min.
• Recording and real time indication of kg per cage and in total.
• Indication of silo quantity, and alarms if close to empty.
• Recording of feed start and stop per cage.

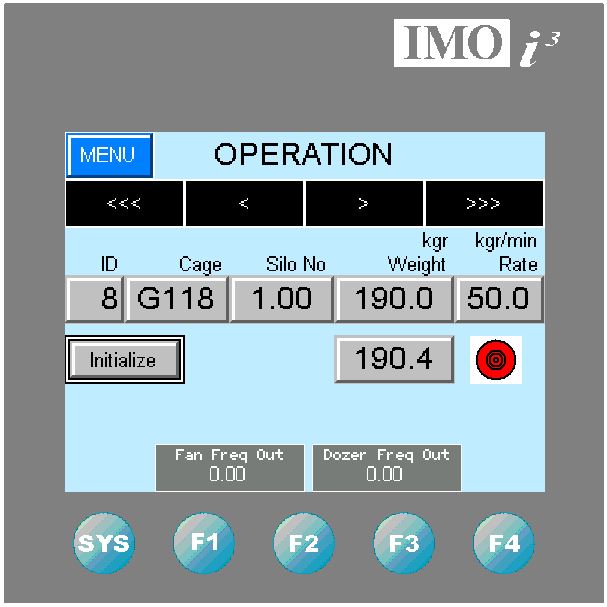

• 7” TFT color touch screen.
• MicroSD Data storage up to 32 GB
• File data import through USB port.
• Ethernet port.
• Power Supply 10-30Vdc
• Modem SMS/GSM/GPRS (optional)
• RS232 / 485 port
